หัวโพรบ CMM 3 แกน รุ่น PH10M and PH10MQ PLUS

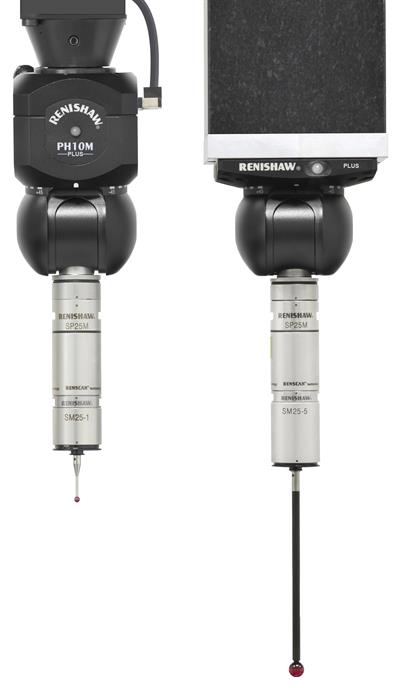

PH10M PLUS and PH10MQ PLUS

  1. The PH10M PLUS and PH10MQ PLUS are motorised indexing heads that re-orientate the probe repeatably to any one of 720 positions at 7.5° increments
  2. Autojoint mount for repeatable probe positioning
  3. Torque capable of lifting a 300 mm (11.81 in) long extension bar
  4. Full multiwire capability for probes such as TP7M and SP25M
  5. Rapid automatic probe interchange via ACR1 or ACR3
  6. AM1 for PH10M PLUS and AM2 for PH10MQ PLUS adjustment modules for aligning the probe head to machine
  7. PH10MQ PLUS fits inside the quill for a neater and shorter probe mount



PH10MQ specification

Length 73 mm
Width 80 mm
Weight 730 g
Probe mounting Autojoint (multiwire)
Head mounting Direct to quill
Suitable controller PHC10-3
Repeatability of position 0.4 µm (0.00002 in) specified at a distance of 62 mm
Total no. of positions 720
Max recommended drive torque 0.45 Nm
Maximum extension bar 300 mm (11.8 in) using PAA3 extension
450 mm (17.7 in) using PAACF special order only extension



แผนผังอุปกรณ์เสริมของหัวโพรบรุ่น PH10M PLUS / PH10MQ PLUS



PH10M and PH10MQ PLUS system diagram
